PolyBlind™ Film&Glass

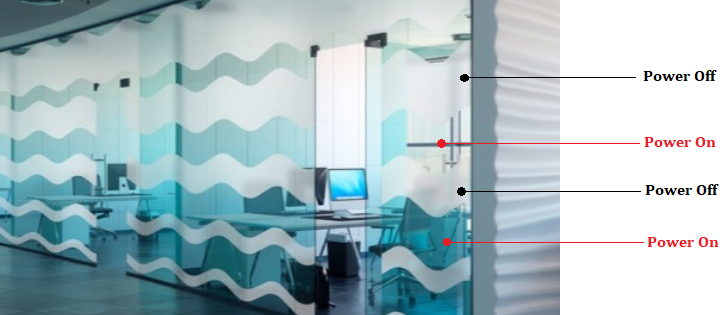

PolyBlind™ Film/Glass(Electronic curtain) is one of our latest technologies; a patented technology that divides switchable sections as a curtain or shutter, one section at a time in a single piece of film or glass without visible wires. It can be programmed to transition up or down, or you can program only one or two sections at a time to be “private” while others are clear.

PolyBlind™ Film/Glass(Electronic curtain) could be installed in the office, study room, bathroom, show room, VIP room, etc... There are so much advantage that you can think such as cutting down on germs and allergens, decreasing the dust in your place, protecting your privacy.



PolyBlind, Electronic, Curtain, Glass, Transparent, Cloudy, Blind Window, Electronic curtain, Magic Glass, Power Glass,

UV protection, Sun protection, fashion glass window design, intractive window glass design

What is PolyBlind™ Film/Glass?

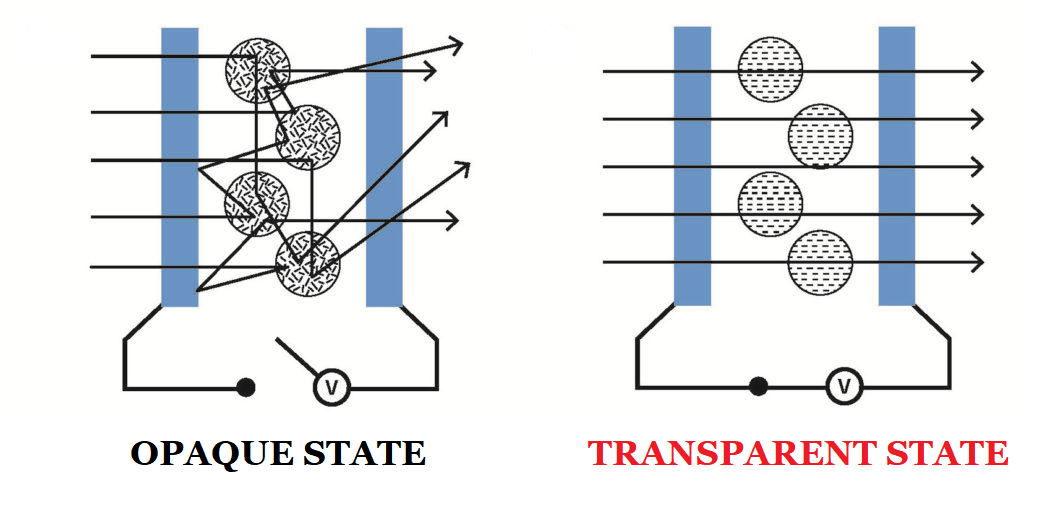

With all of the same unique benefits of Polyvision™, when electricity is applied at the partial area of PolyBlind™ Film/Glass, the liquid crystal molecules line up, the incident light passes through, the partial area of PolyBlind™ Film/Glass becomes transparent from a dormant, milky-white translucent state.

PolyBlind™ Film/Glass has multiple uniquely engineered designs for you to choose from. With options similar to typical window blinds, and as unique as chevrons and diamonds, making your smart glass windows even more exciting.



Application

  • Privacy

It provides privacy at a moment’s notice in both exterior and interior installations. Offices, conference rooms, private rooms in restaurants, hospitals, clinics and medical offices, and banks are only a few of the locations where Polyvision™ Switchable Privacy Film/Glass can transform the functionality and appearance of the space. It also offers privacy for private homes, especially where street views or neighboring homes are close at hand, and it eliminates the need for dust-collecting draperies, shutters, and blinds.





  • Safety & Security

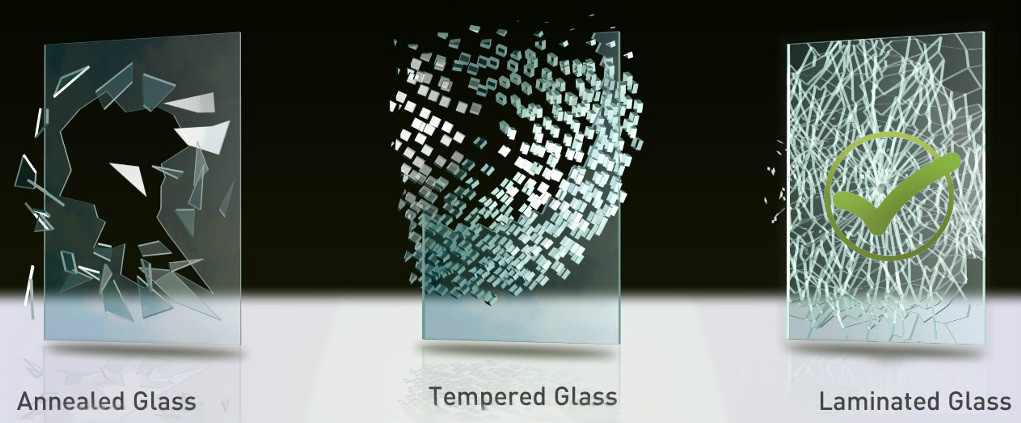

It is constructed like laminated safety glass. The Polyvision™ Switchable Privacy Film is laminated between the glass prevents shattered glass from flying and scattering after a severe impact, keeping the window intact. It meets safety glass standards and can be used in security and hurricane-resistant window applications.





  • Multifunctional

It performs excellently as a rear-projection screen for videos, slideshows, or almost any projected image. It can also substitute for a white-board, maximizing the utility of a conference room, classroom, or consultation room.





  • Day-lighting

To daylight an interior effectively, harsh sunlight must be moderated to reduce glare and spread more even illumination at comfortable levels. Polyvision™ Switchable Privacy windows, skylights, and glazed doors can be switched to translucent mode at peak hours of sunlight to cut light levels roughly in half and scatter the light, providing a diffused source that illuminates more of the room with less glare.





  • Temperature control

Polyvision™ Switchable Privacy windows reduce transmission of infrared radiation on demand. Switching a Polyvision™ Switchable Privacy window to its translucent state during peak sunlight helps control interior temperature and reduces the load on air conditioning systems, lowering energy costs.







Do you have other ideas?

Contact us for further discussion about your vision, we will try our best to help you implement it!

Share with us:pt@polytron.com.tw (Click it!)

Specification

  • Max Size:1200x3300mm
  • VLT (on):>72%
  • Haze (off):>97%
  • Working Voltage:65Vac
  • Response Time:<100ms
  • Power Consumption: approx. 25W/m2
  • Operating Temperature:-10~70°C
  • Life Span:>25 years



Quality Concern

We dedicate our time to providing quality products to every customer by focusing on maintaining a strong quality management system.  It is important for us to not only meet our customers’ expectations but to exceed them by having skilled technical expertise at our disposal.  We are able to troubleshoot critical situations when necessary, to give advice on framing or smart home systems, and to educate customers on optimum lighting conditions for the lowest haze.

√  UL Certified

√  ISO 9001 and ISO 14001:Factory, Polytronix, Inc., is certified for manufacturing of PolyvisionTM Film

√ SGCC : Approved interlayer and has been tested to ANSI Z97.1.

√  Longest Experience:Over 35 Years

√ Well-Established EMS / System Integration, Supply Chain Management, PCB Assembly, Program Management and Testing Capabilities.

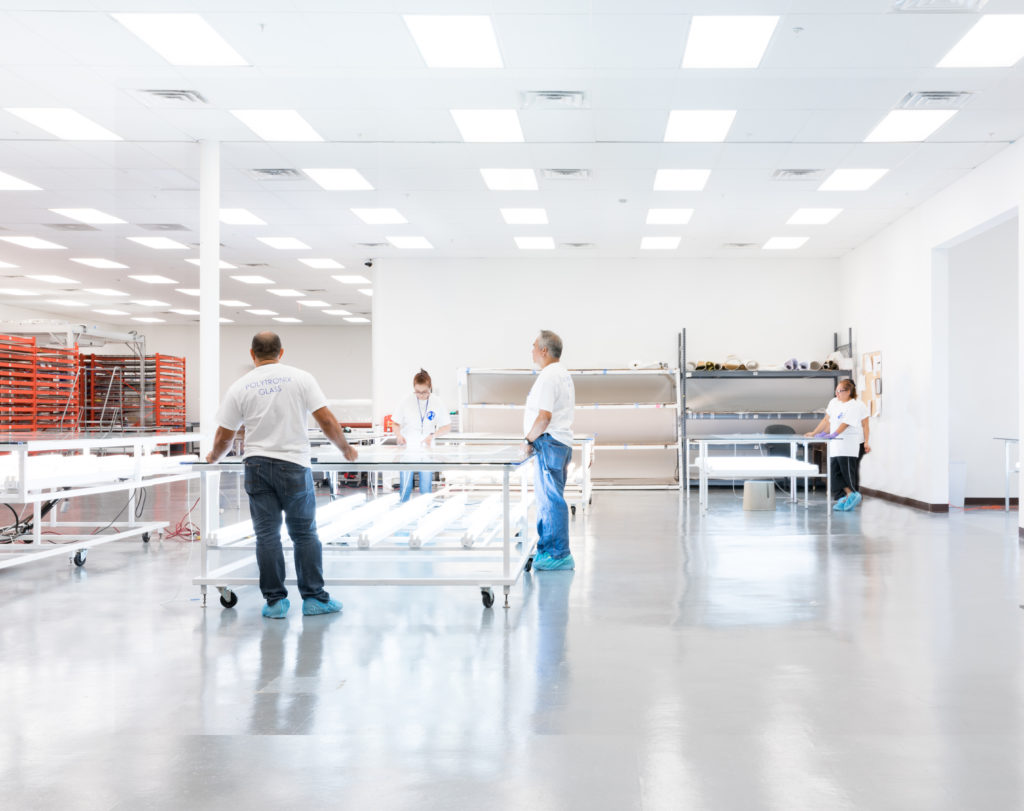

√ GREEN Manufacturer (Producing all products in a cleanroom environment and protected with all ESD requirements.)

√  Life Span:Over 20 Years (Claim is supported by manufacturer’s testing data.)





Would you like to know more information?

Please feel free to contact us! Email:pt@polytron.com.tw  (Click it!)
